10g to1000g fully automatic weighting forming filling sealing counting Machine with load cell

FOB Reference Price:Get Latest Price
US $4,600-5,200 / Sets | 1 Set/Sets packing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Film, Pouch
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V 50/60HZ
Power:
1.9KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HANTUO
Model Number:
HT-420GT-A
Weight:
350KG
Dimension(L*W*H):
800*1100*1900mm
Certification:
CE Certificate
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
SUS304 Stainless Steel
Function:
pillow type bag sugar packing machine
Model:
HT-420GT-A
Max film width:
420mm
Packing material:
granule products
Bag sizes:
L50-300,W50-200mm
Warranty:
12 Months
Packing accurate:
±1%
Packing speed:
20-60bags/min
Name:
vertical automatic pouch grains packing machine
SupplyAbility
SupplyAbility:
50 Set/Sets per Month customized for sugar packing machine
Packaging & Delivery
Packaging Details
Standard export wooden case per pillow type bag packing machine
Port
shanghai port per automatic pillow type bag packing machine
Lead Time :
Shipped in 15 days after payment

10g to1000g fully automatic weighting forming filling sealing counting Machine with load cell






Product Description

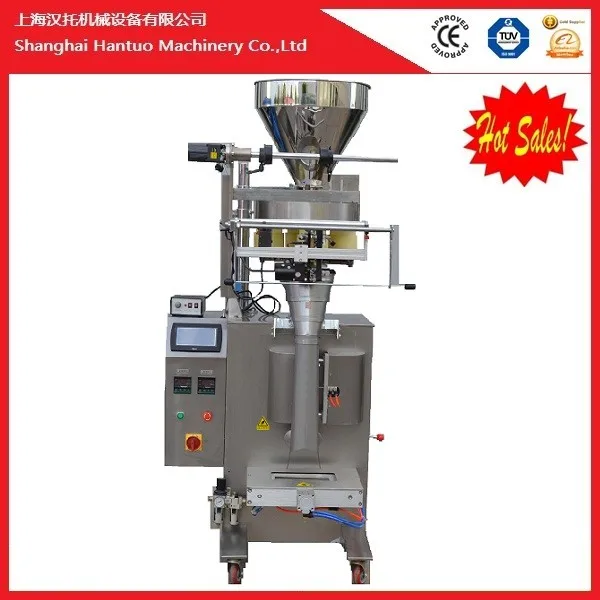

This is a full 304 stainless steel made vertical packing machine which is mainly used to pack granular products.

You can just put the roll film on the machine, it can make it into the bags you want .

such as sugar, salt, coffee beans, rice, beans, peanuts,sunflower seeds, gains, nuts, potato chips,

cereals, tea, fish balls, frozen dumplings, washing powder, desiccants,etc.





Product Application




Bag Shapes





Main Function



1. This machine can automatically complete cup volumetric filler measuring--coding(optional)--bag making--filling--gas
injection/exhaust (optional)--sealing--counting.



2. PLC control system, color touch screen display, photoelectric tracking, high reliability and intellectualized degree.



3. Has fault display system, easy to operate and maintain.



4. Make punching blade (round/euro hole) and gusset bag device after customer's request.



5. Machine body and all food touching part are made by 304 stainless steel (measuring cup material: nylon/stainless steel).





Technical Parameters

 Model

 HT-420GT-A

 Packing speed

 20-60 bags/min

 Film width

 420mm

 Making bag size

 L50-300mm,W50-200mm

 Packing accurate

 ±1% (depends on product)

 Power

 1.9KW

 Power supply

 AC 220V 50/60Hz

 Sealing type

 Pillow, thress / four sides seal

 Net weight

 350KG

 Machine size

 L800*W1100*H1900mm



Detailed Images






Packaging & Shipping

 This machine will be packed into standard export wooden case to protect your product .Also it can be packed as your request .

Normally it was shipped by sea which can save your cost,but it is longer days taken than by air which is more expensive.




After shipped , we will provide you satisfied after sale services as below:



1. send engineers be your side to set up the machine as required ;



2. one year guarantee ,any main part broken, we provide you the parts free of charge except the consumable parts ;



3. 24 hours online to solve your problems and confusions , by using emai, video call or international call.





FAQ

Q:How to contact you ?

A: You can just send us the inquiry, we will contact you immediately by email or calling .



Q: How can i know the product you shipped is the one i purchased ?

A: After machine is made, we will invite you to visit our factory to inspect the machine and shipped to you in front of you after balance paid .



Q: How to make the order ?

A: Please see below picture process:
